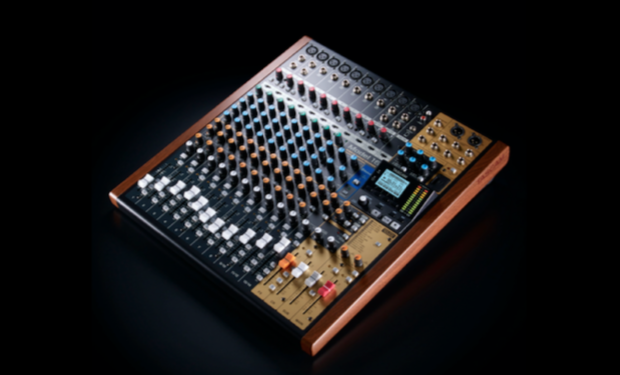

The new TASCAM Model 16 all-in-one mixing studio takes live multi-track recording to an affordable new level, combining analog recording and mixing with the workflow and quality of digital. The Model 16 is a full-featured compact mixing console that fits comfortably in a rehearsal studio, house of worship, home studio, or any production environment where space is limited.
Offering a blend of analog and digital technology, the Model 16 integrates a 14-channel input analog mixer, 16-track internal digital recorder, multi-track USB 2.0 audio interface, 16 editable effects, versatile mixing and routing channel path, and Bluetooth wireless streaming into an all-in-one unit.
The Model 16’s 14 inputs provide top panel access for microphones, line inputs, and instruments. Channels 1-8 feature XLR mic inputs utilizing TASCAM’s Ultra-HDDA (High Definition Discrete Architecture) microphone preamplifiers with 48- volt Phantom power. This setup allows combinations of vocals, drums, mic’d instruments, and more to be connected along with direct output instruments such as keyboards, bass or acoustic guitar, multi-effects, electronic drums or any line sources.
Channels 9-10 and 11-12 feature a single XLR mic input, each with stereo 1/4” line inputs. Channels 13-14 feature a stereo RCA and mini-jack input. Or, alternatively, an external Bluetooth device can be connected to the Model 16’s wireless channel for controlling streaming audio volume via the Channel 13-14 fader control.
The internal 16 track multi-track recorder records WAV files (up to 48kHz/24-bit) directly to SD, SDHC and SDXC cards. Punch in/out is available for up to 8 tracks simultaneously, a versatile feature for songwriters and solo artists alike.
The Model 16’s robust built-in USB Audio Interface can send/receive (16-in/14-out) audio data with up to 24-bit/48kHz recording quality—to and from a wide range of popular DAWs, including GarageBand and more. Via USB, external tracks can be summed to a single or stereo paired Model 16 fader to control custom or stereo submixes for drums, vocals and more using one or two faders.
Using the onboard channel Mode switch, each channel (or stereo paired channels) can independently select the input source to fit the recording or mixing environment or setup. The input source for each channel can be selectable as live, internal multitrack recorder (MTR), or USB for flexibility in signal path processing and workflow.
Each channel strip features 60MM faders, a 1-knob compressor for inputs 1 through 8, 3-band EQ with a sweepable midrange frequency and 100Hz Low-cut Filter (3-band only on channels 9 through 14). Model 16 has a built-in effects processor with selectable and editable effects (reverb, delay, chorus, flange).
Three AUX Outputs are offered on each channel for flexibility in monitoring and effects routing—MON 1 [pre], MON 2 [pre/post], and FX [post]. Selectable Mute, MAIN/SUB, and PFL switches are available on each input channel for versatile audio and signal routing options during recording or mixing.
Hi/Lo shelf and wide/narrow-Q semi-parametric EQs (for Main and Monitor outputs) provide additional tweaking options for dialing in the final mix. MAIN Output via XLR balanced and SUB Output via TRS balanced connectors, 12-segment L-R paired LED Output Level Meters and a Stereo Headphone Output round out the long list of recording and mixing features and functions. The unit can also be rack-mounted with an optional rack mount kit.
With a faux wood-paneled retro-styling that reflects its analog character and resemblance to the TASCAM Portastudio, the new TASCAM Model 16 all-in-one mixing studio extends the features and functionality of its larger format companion, the Model 24 audio mixer and recorder, into smaller format live recording environments, and at a lower price point.
For more information on TASCAM’s Model 16 all-in-one mixing studio, visit TASCAM online at tascam.com.
