New Gear/ New Toy Review: Warm Audio Wa-47jr FET Condenser Microphone

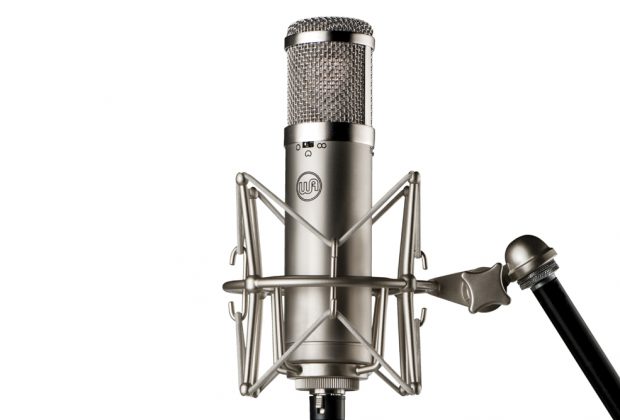

Warm Audio continues their success at offering careful renditions of classic professional audio gear at affordable prices with the new WA-47 Tube Condenser and WA-47jr FET studio microphones.

The Warm Audio WA-47jr FET uses the same K47-style 34-mm diameter capsule with a 6-micron thick diaphragm as Warm's WA-47 Tube condenser microphone. In place of the tube electronics is a transformerless solid-state discrete FET (Field-Effect-Transistor) circuit. The Toshiba FET is surrounded with Wima film capacitors and Panasonic electrolytic types--all first rate components.

The side-address WA-47jr features three polar patterns: Cardioid, Figure-of-Eight, and Omni-directional all switchable right on the front of the mic itself. There are switches for a gentle 70Hz high pass filter and -10dB attenuator capsule pad on the back of the mic.

The mic weighs in at just under 500-grams and measures about 210-mm tall by 52-mm in diameter. Its self-noise is 9dBA, dynamic range specified at 138dBA and max SPL is rated at 147dB.

I tried out the WA-47jr for a lead vocal using an API 1608 console. I found the WA-47jr to put out a good level with the mic gain knob on the board somewhere just below the mid-way point and without using the console pad. For lead vocals the mic produced a clear and articulated sound that seemed to fit into the mix well. It is crisp but not overly bright as lot of new condenser mics are.

The 70Hz high-pass is very gentle and, even on male vocals, was barely noticeable except that it removed some of the air-conditioning noise and rumble. In my studio on hot days with the A/C running this can be a problem when recording quiet vocals.

The -10dB pad worked great when I placed the WA-47jr on a medium loud guitar amp. I went with it set cardioid and about one foot away and aimed mid-way between the dust cover and the surround of the 12-inch speaker.

If I switch to the omnidirectional pattern, more of the surrounding space is included. This is more of a total speaker cabinet sound if you're using a multi-speaker cabinet. The Figure-of-Eight polar pattern works great for a room mic. I tried aiming the side nulls of the pattern at a loud drummer to pull in more of the room and less direct sound from the kit. The Warm Audio WA-47jr will sound awesome in a good sounding room!

The Warm Audio WA-47jr sells for $299 MSRP and I think it is a great all-around utility studio condenser microphone. Good for vocals, acoustic and electric guitars or even as a mono drum overhead mic.
