New Gear Review: API 505 DI Module



The API 505 DI Direct Injection module is a new 500-series that fits the company’s consoles, API Lunchbox® as well as the API 1608 small-format analog console.

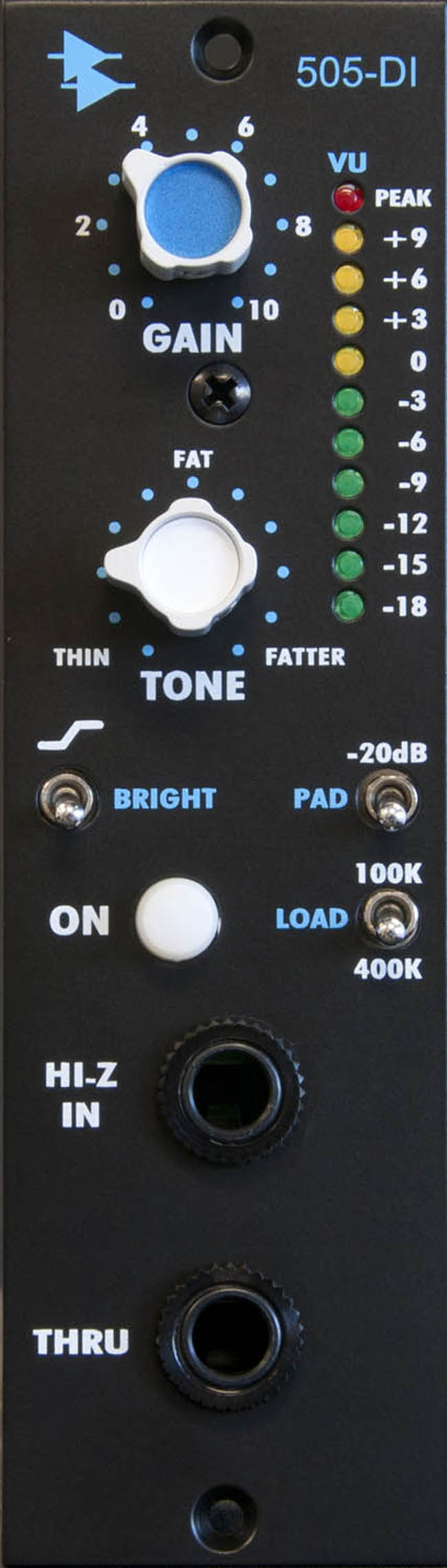

The 505 DI includes gain control, adjustable tone control, a bright switch, a -20dB pad, switchable 100/400k-ohm input load impedance toggle, and a thru connection to your instrument/guitar/bass guitar amp.

With 55dB of total gain available, the API 505 DI amplifies your instrument’s signal output up to +4dB line level directly (pardon the pun)—without the need of a microphone pre-amp.

I also like the 10-segment front panel LED VU meter that ranges from -18dB to +9dB with peak overload indicator.

Like the console-based API 205L, the 505 DI is specifically designed to accept a guitar, bass or keyboard direct input while minimizing any of the loading effects that change the tone of your instrument’s high impedance pickups.

As a very handy addition to any 500 Series rack, the API 505 DI module sells for $595.



By: Barry Rudolph
